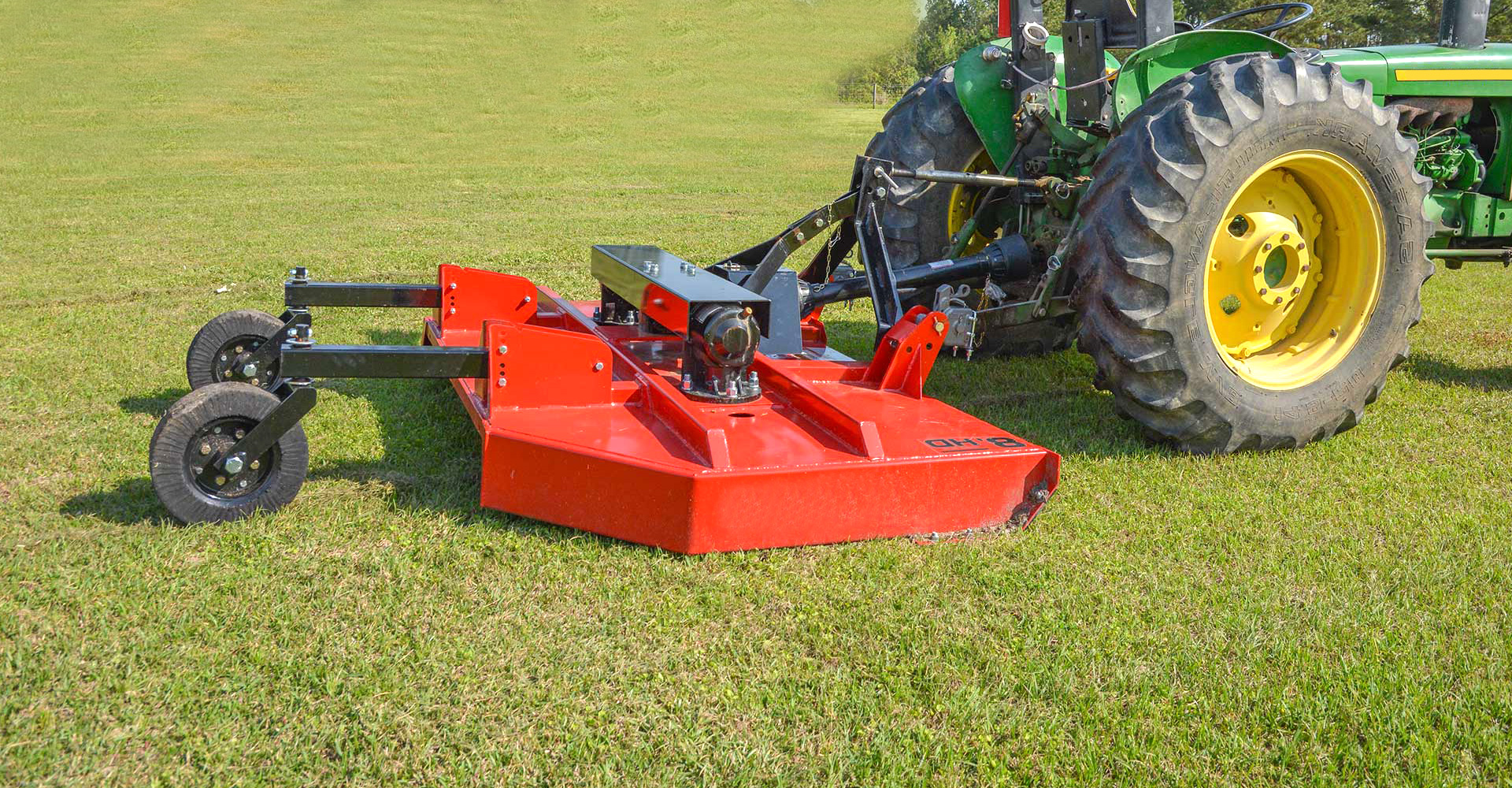

Rotary Cutter Parts
We have already made huge strides in our sustainability journey by investing in plastic recycling and energy from waste infrastructure low carbon collections, leading to reduction in nation carbon.

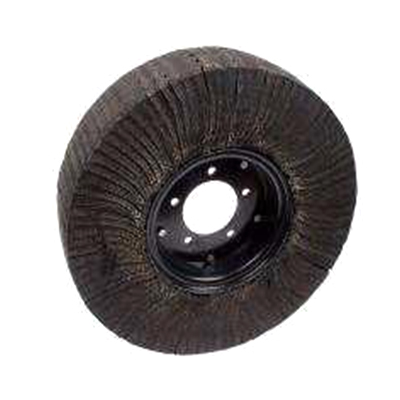

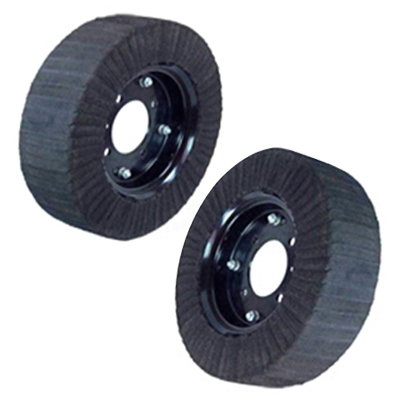

ROTARY CUTTER TAIL WHEEL
ROTARY CUTTER TAIL WHEEL

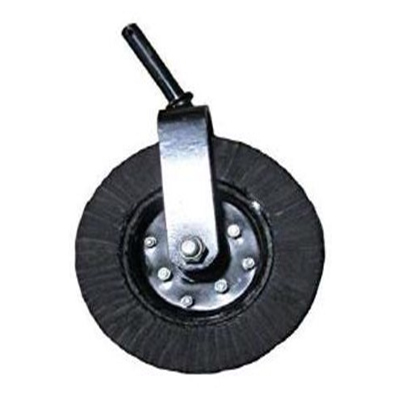

ROTARY CUTTER ASSEMBLY
| Part # | Description | Hub Bolt | OD | Width | Capacity LBS | Tire Design |
|---|---|---|---|---|---|---|
| HMK-48 | 4 x 8 Laminated Tire - Flat Free/Flat | 4 on 5.00" | 15" ± ¼ | 4" ± ¼ | 1000 Lbs Per Axle | Laminated |
| HMK-58 | 5 x 8 Laminated Tire Flat Free/Flat | 4 on 5.00" | 15" ± ¼ | 5" ± ¼ | 1000 Lbs Per Axle | Laminated |
| HMK-69 | 6 x 9 Laminated Tire - Flat Free/Flat | 5 on 5.50" | 21" ± ¼ | 6" ± ¼ | 2000 Lbs Per Axle | Laminated |
| Note : Available in all kind of Sizes and Colors Use In : Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc. |
||||||

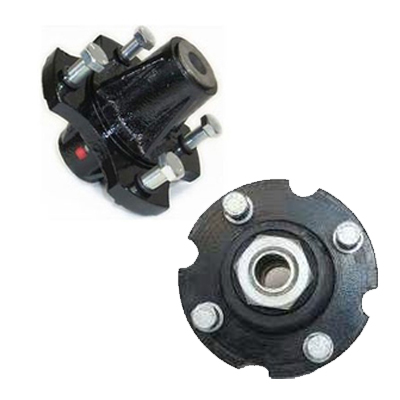

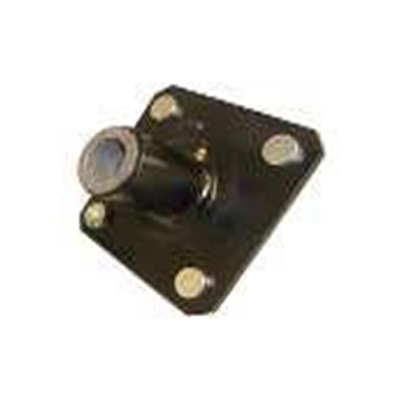

Rotary Cutter Tail Wheel Hubs
Rotary Cutter Tail Wheel Hubs

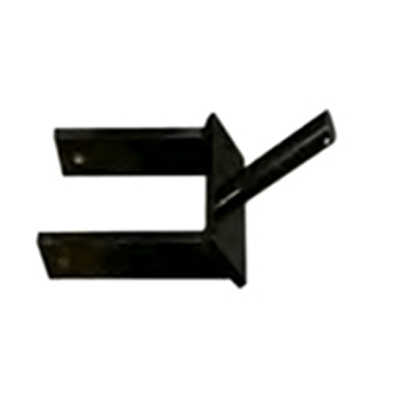

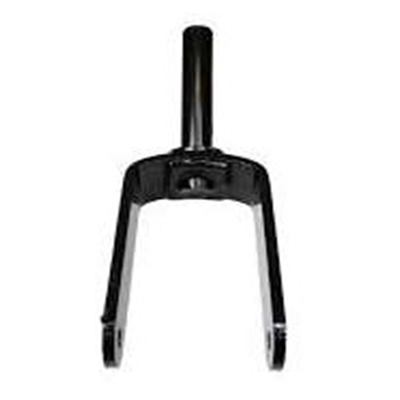

Rotary Cutter Tail Wheel Fork
Rotary Cutter Tail Wheel Fork
| ROTARY CUTTER TAIL WHEEL HUB | ||||||
|---|---|---|---|---|---|---|
| Part # | Description | Bored | Color | Type | Thickness | |
| HMK-FH | Fabricated Steel Hub Fits 3/4" & 1" Axle | 3/4" & 1" | Black | Steel | 6mm | |
| HMK-CHB | Cast Iron Bushing Hub Fits 3/4" & 1 Axle | 3/4" & 1" | Black | Casting | Bushing | |
| HMK-CHBR | Cast Iron Bearing Hub Fits 3/4" & 1 Axle | 3/4" & 1" | Black | Casting | Bearing | |
| ROTARY CUTTER FORKS | ||||||
|---|---|---|---|---|---|---|
| Part # | Description | Yoke Dia | Color | Play | Bolt Holes | |
| HMK-TWF12575 | Tail Wheel Fork STD | 1-1/4" | BLACK | 5-1/2" | 3/4" & 1" | |
| HMK-TWF15075 | Tail Wheel Fork HD | 1-1/2" | BLACK | 5-1/2" | 3/4" & 1" | |
| Note : Available in all kind of Sizes and Colors Use In : Bush Hog, Big Bee, Kubota, King Kutter, Hardee, Mohindra Woods and etc. |
||||||
